Product details
Product overview:
The fixed axle weight scale is a metering equipment which measures the axle (group) weight of the vehicle respectively and then accumulates the weight of the vehicle (total weight).

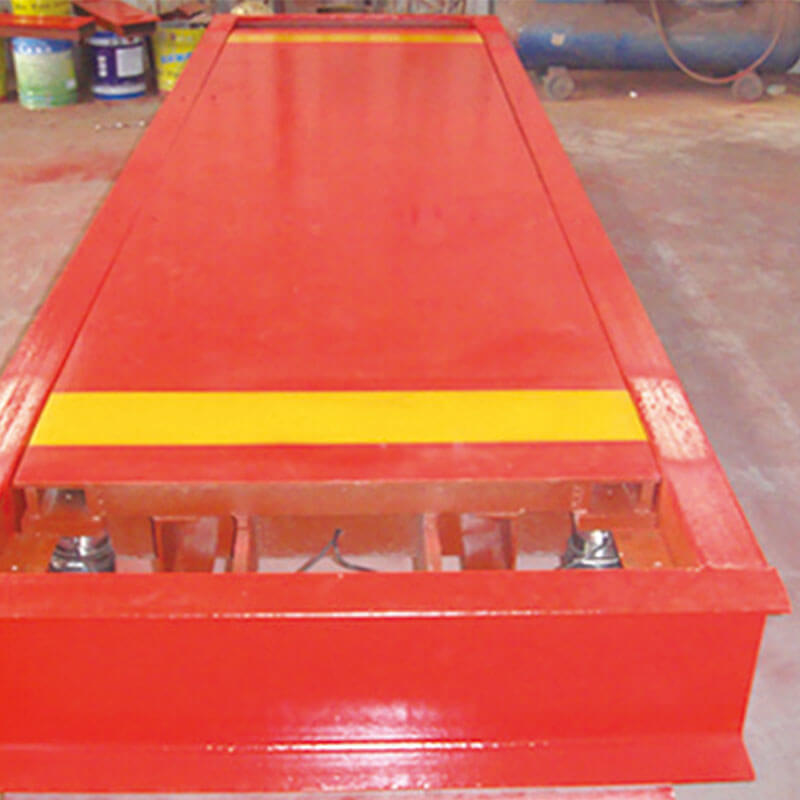

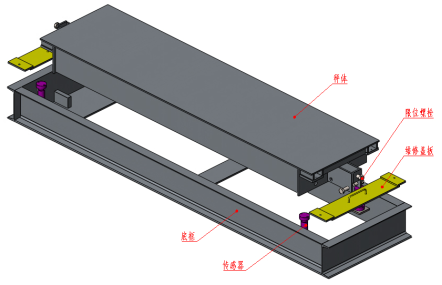

It is mainly composed of scale platform, bottom frame (embedded into the cement floor), limit device, sensor, instrument, junction box and other components. Printer, computer, voltage regulator, power surge and other external equipment can be selected to form a perfect system.

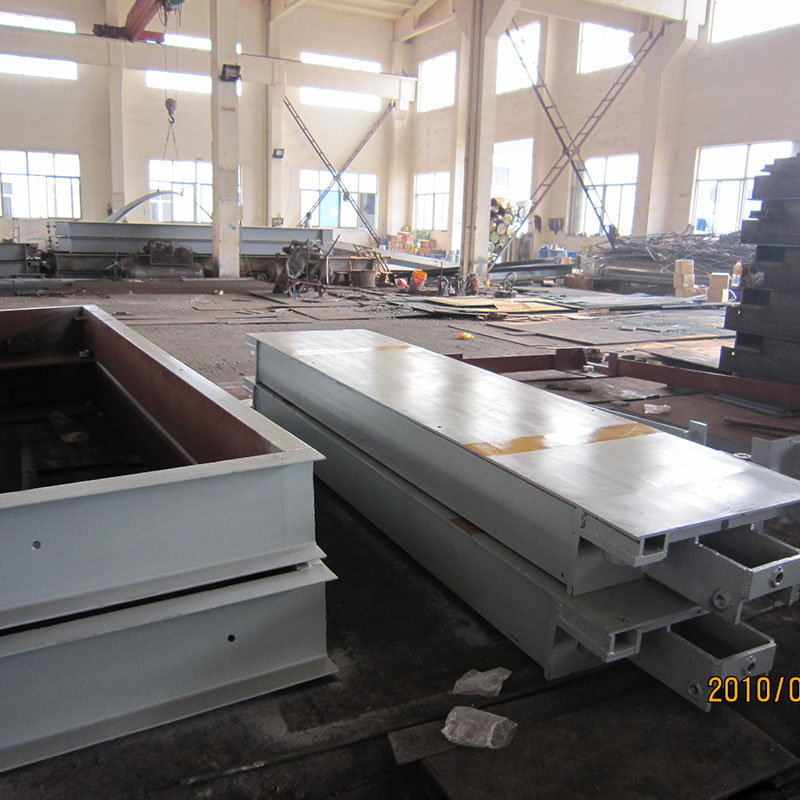

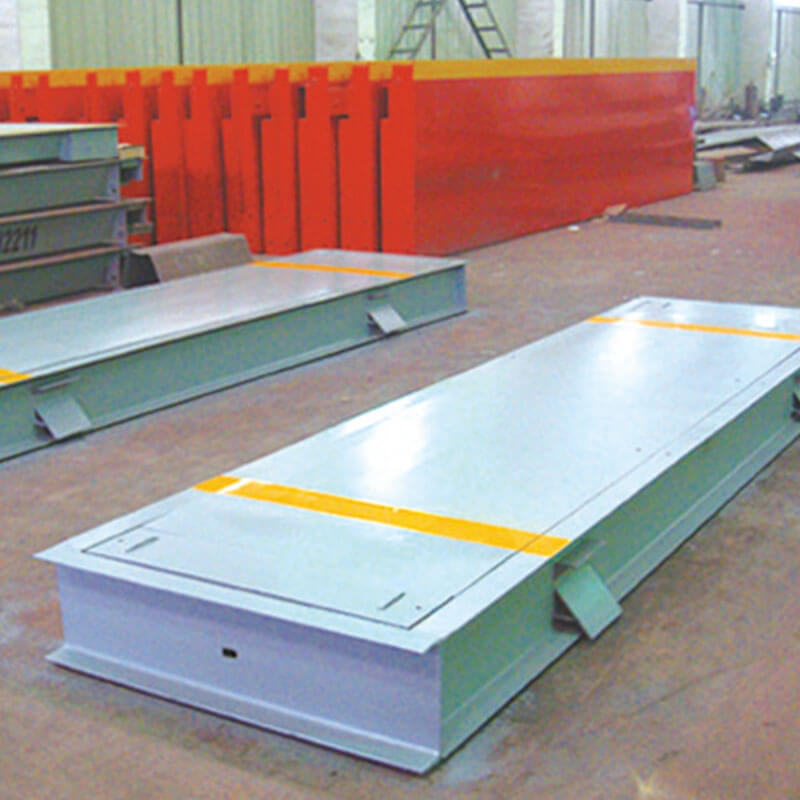

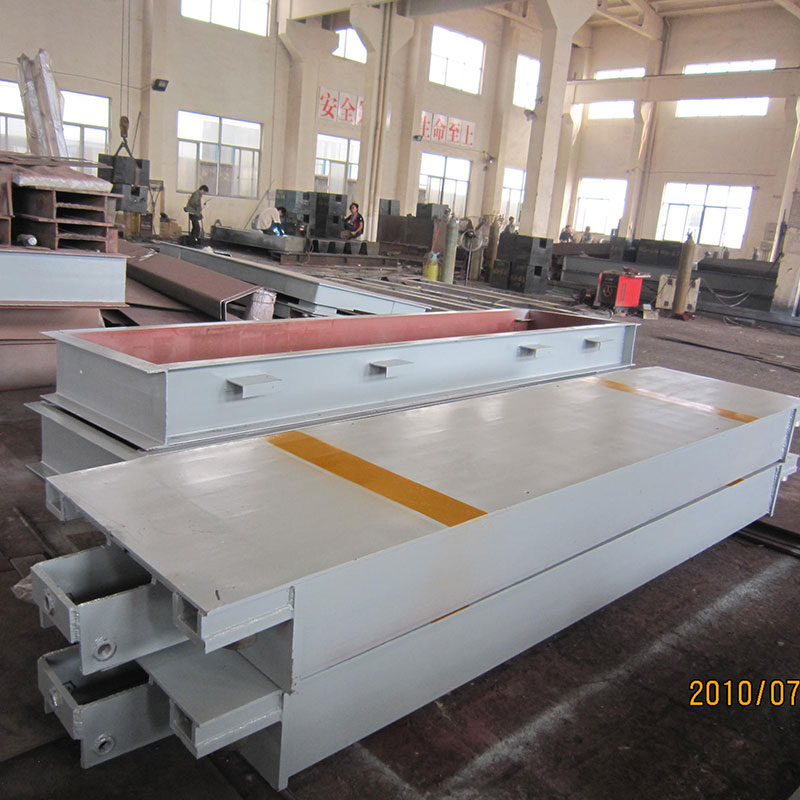

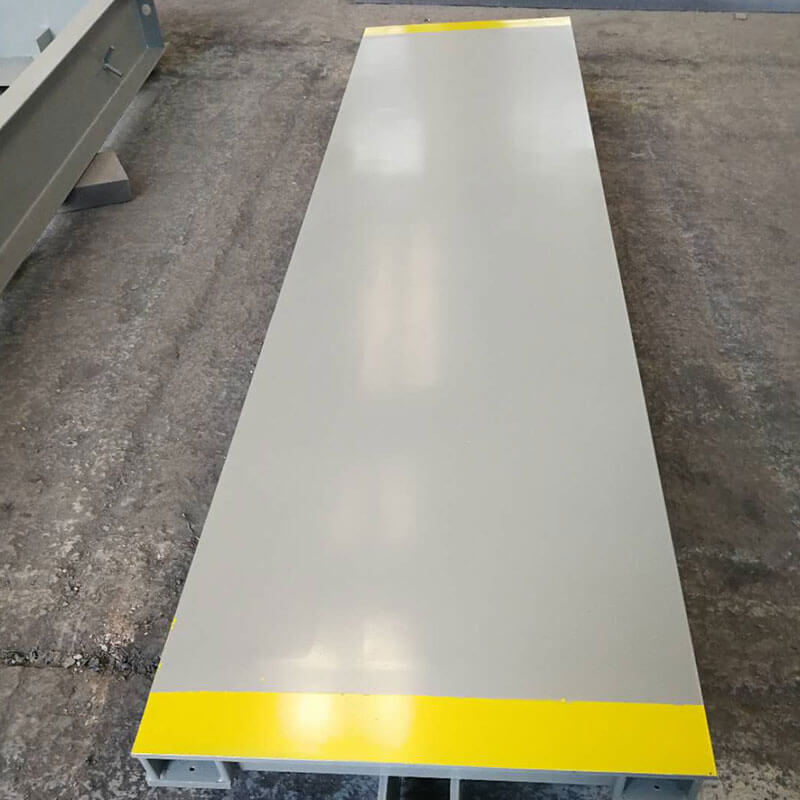

The platform is a frame structure composed of steel plate and section steel welded seamlessly.
During manufacturing, the CNC plasma cutting machine and sawing machine are used to cut the section steel to ensure the dimensional accuracy of the product.
Welding using automatic welding machine for one-time Seiko welding, to ensure the weld strength and weld appearance.
Weighing quickly and accurately, easy maintenance. Easy to operate, long-term stability.
The scale body surface uses the large shot blasting machine to carry on the whole shot blasting, and carries on the paint spraying within 2 hours, guarantees the product waterproof, the corrosion resistance ability.
Applicable occasions:
It is suitable for weighing materials in construction, forestry, energy, metallurgy, environmental protection (garbage treatment), factories, mines, logistics and other industries, which covers a small area, requires a small amount of basic construction and various kinds of automobiles.
It is used for the measurement of vehicle weight in fixed road section by the traffic department, or the self-inspection load measurement of vehicles managed by the industries of logistics, industry and mining.
Precision grade | Weighing scale | The length of the | The width of the | The installation height | The power supply |
Ⅲlevel | 10~200t | 2~4m | 0.6~3m | 315mm | 220V 50HZ |
The level of accuracy: OIML Ⅲ
Weighing: 10T-200T Single axis weighing: 30T
Dynamic: uniform speed: total weight accuracy class 2 (speed ≤5km/h)
Axle load accuracy class D (0.3%-1%) (speed ≤5km/h)
Working temperature: Weighing display instrument: -10 ~ +40℃
Weight sensor: -30 ~ +65℃
Safety overload: 130% F.S.
Relative temperature: < 95%
Working power supply: 220V/50Hz
Protection grade: IP68
Note: uneven road conditions, obvious speed change, braking and other conditions will reduce the accuracy
Company strength
Products are: portable axle load meter, explosion-proof instrument, liquefied petroleum gas filling scale, wireless electronic hanging scale, the company construction area of 15000 square meters, employees more than 200 people.
Rich engineering experience and perfect service ability, with an annual output of 3000 large scale, 8800 small scale, commercial scale 27000 units of capacity.
It has unique advantages in the structure, precision, stability, surface treatment, anti-corrosion, waterproof, explosion-proof and application in special industries.
The company has a strong ability to quickly develop and respond, timely provide targeted design products, to fully meet customer needs.
In strict accordance with the national standards to organize the development and production, in the enterprise to establish, implement and maintain the ISO9001:2000 quality management system.
The production of weighing products and accessories are extremely rich, and the specifications are complete, the delivery is fast, has a high cost performance, and has obtained a number of national patents.
Free technical consultation, professional and technical personnel 7*24 hours online consultation, free on-site survey, senior engineers customized solutions within 36 hours.
In the domestic and foreign markets to establish a good brand image, Midea, Mengniu, Sany Heavy Industry, China West Power, China Railway and other thousands of customers have chosen us.
